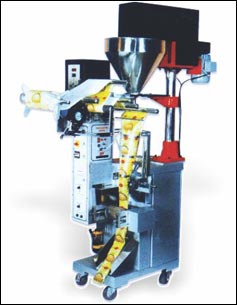

Fully Automatic Vertical Form-Fill-Seal machine with Auger System
(Model No. JC-152)
Application: |
| The Auger Base Form-Fill-Seal Machine operates on the principle of Positive Displacement Screw under constant head. Auger Filler Machine is a versatile powder filling machine for packing non free flowing powder like Pharmaceutical Powder, Chemical Powder, Talcum Powder, Ground Spices, Ground Coffee, Colour, Milk Powder, Baby Foods Powder, Custard Powder, Henna Powder etc. |
| |
| Sealing Type : |
| 3 side sealing / 4 side sealing / Centre sealing. |
| |
| Packing Size : |
50 mm - 150mm (film length)
30mm – 220mm (film width)
( Enlarge type can be made upon order )
|
| |
| Packing Range : |
| From 10gms, 25gms, 50gms to 1OOgms
(Depending on specific gravity of material to be packed ) |
| |
| Speed : |
25 - 28 pouches / min.
(Depending on flow rate and volume of the product) |
| |
| Packing Material : |
| Any heat sealable laminate or Alu. Foil based material |
|
| ELECTRICALS : |
| |
| Motor : |
| ½ hp, 3 phase 440 volt, 50 hz |
| |
| Heater : |
150w x 2pcs, 400w x 2pcs (Centre sealing)
400w x 4pcs ( 3 - 4 side sealing)
|
| |
| Machine Dimensions : |
| Length l760 x Width 700 x Height 2130 mm. |
| |
| Net Weight : |
| 480 kgs (Gross 500kgs.) |
| |
| Optional Equipments : |
Stainless steel cover
Gas Flushing Attachments
Product Elevator.
Batch Printing Unit.
Conveyor.
|
|
