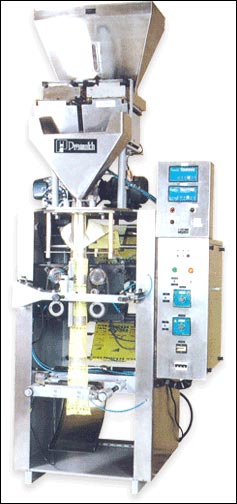

Fully Automatic PLC Based Weigh Feeder Vertical F. F. S Machine
(Model No. JC-153)

Application:
It consists of weighing pans fitted on load cell. The load cell is then connected to a microprocessor type controller where the weight settings etc. are made. When it receives the dump signal, then the material is dumped into the machine. A film roll of suitable width has to be mounted at the back of the machine. Then the film goes into the unwinding assembly and then enters into the forming collor and forms into a tube. The vertical sealer seals the front of the tube. Then the material is filled and the bottom seal is made. The cutter then automatically seperates the pouch. This Machine is suitable for packing Capsules, Namkeens, Dry Snack foods, Potato chips, Popcorn, Cashew Nuts, Pista, Almonds, Biscuits, Hardware like Bolt, Nuts, Screws, etc.,

Sealing Type :
Centre Sealing

Packing Size :
Width from 50mm to 180mm
Length from 70mm to 250mm

Packing Range :
From 1OOgms to 1 kg.

Speed :
From 7 Cycles upto 15 Cycles
per minute per Track.

Packing Material :
Any heat sealable laminate or Alu. Foil based material


1. Precision loadcell weighing mechanism
2. Weighpan with pneumatically operated lids
3. Outlet chute with optional extension
4. Fine feed trap box (pneumatic operation)
5. Bulk feed gate (pneumatic operation)
6. Product feed detector (photo proximity)
7. Secondary feed tray with integral fine feed shelf
8. Primary feed tray
9. Product hopper with adjustable gate
10. Encapsulated vibratory feeders (electro-magnetic)
11. Stainless steel construction

ELECTRICALS :

Motor :
1hp, 3phase 230 V, A/C Motor

Heater :
300w x 4pcs, 400w x 1 pc.

Machine Dimensions :
Length l350x Width 1150 x Height 2500mm with Hopper

Net Weight :
1500kgs

Optional Equipments :
Stainless steel cover
Gas Flushing Attachments
Product Elevator.
Batch Printing Unit.
Conveyor.
