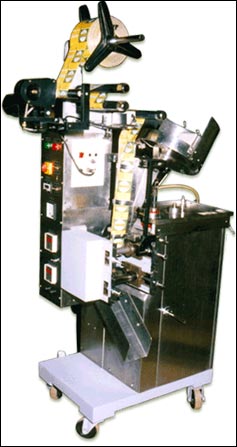

Fully Automatic Vertical Form-Fill-Seal Machine for Packing Tablet
(Model No. JC-157)
Application: |
| The Machine operates on the principle filling of volumetric dish counting system. It is suitable for automatic packaging of medicine & food stuff products such as Sugar Coat Tablet, Medicine Tablet, Chocolate Pill, Round Sugar Ball etc. |
| |
| Sealing Type : |
| 3 side sealing / 4 side sealing / centre sealing |
| |
| Packing Size : |
100mm - 280mm (film length)
200mm - 400mm (film width)
(Enlarge type can be made upon order)
|
| |
| Packing Range : |
55gms - 35gms
(Depending on specific gravity of material to be packed)
|
| |
| Speed : |
20 - 22 pouches / min.
(Depending on flow rate & volume of the product) |
| |
| Packing Material : |
| All heat sealable laminate PET/POLY, PET/FOIL/POLY MET, PET/POLY/CPP/OPP etc. |
|
| ELECTRICALS : |
| |
| Motor : |
| ½ hp, 220v/single phase/50-60hz. |
| |
| Heater : |
400w x 4pcs cartridge type (3/4 side sealing)
150w x 2pcs, 400w x 2pcs (Centre sealing)
|
| |
| Machine Dimensions : |
| Length 875 x Width 750 x Height 2200mm |
| |
| Net Weight : |
| 450kgs (Gross 480kgs) |
| |
| Optional Equipments : |
Stainless steel cover
Gas flushing system
Product elevator
Batch Printing Unit.
Conveyor
|
|
