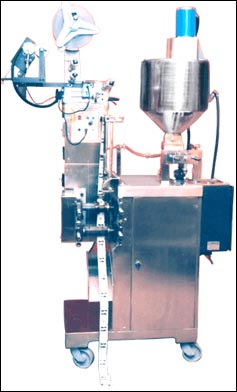

Fully Automatic Vertical Form-Fill-Seal Machine for Packing paste
(Model No. JC-156)
Application: |
| The Machine consist of a hopper mounted volumetric pump dosing with rotary valve system & a hot water jacketed with provision for stirring by geared motor. This machine can pack Jelly, Chocoliquid, Cream, Sauce, Toothpaste, Ketchup etc. |
| |
| Sealing Type : |
| 3 side sealing / 4 side sealing |
| |
| Packing Size : |
60mm - 160mm (film length)
40mm - 160mm (film width)
(Enlarge type can be made upon order)
|
| |
| Packing Range : |
55gms - 35gms
(Depending on specific gravity of material to be packed)
|
| |
| Speed : |
25 - 28 pouches / min.
(Depending on flow rate & volume of the product). |
| |
| Packing Material : |
| All heat sealable laminate PET/POLY, PET/FOIL/POLY MET, PET/POLY/CPP/OPP etc. |
|
| ELECTRICALS : |
| |
| Motor : |
| ½ hp, 220v/single phase/50-60hz. |
| |
| Heater : |
| 400w x 4pcs cartridge type |
| |
| Machine Dimensions : |
| Length 1000 x Width 750 x Height 2200mm |
| |
| Net Weight : |
| 450kgs (Gross 480kgs) |
| |
| Optional Equipments : |
Stainless steel cover
Batch Printing Unit.
|
|
