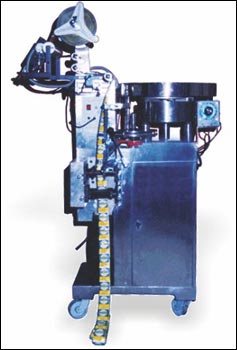

Fully Automatic Vertical F. F. S Machine with Vibrator / Conveyor System
(Model No. JC-158)
Application: |
| The vibrator / conveyor system is mounted on F.F.S.Machine for packing any shape & size of solid pieces like Syringes, Rings, Automobile Spare Parts, Hardware Items, Eyedroppers, Dabbi etc. |
| |
| Sealing Type : |
| 3 side sealing / 4 side sealing / centre sealing |
| |
| Packing Size : |
50mm - 140mm (film length)
30mm - 100mm (film width)
(Enlarged type can be made upon order)
|
| |
| Packing Range : |
| Depending on specific gravity of material to be packed |
| |
| Speed : |
20 - 22 pouches / min.
(Depending on flow rate & volume of the product) |
| |
| Packing Material : |
| All heat sealable laminate PET/POLY, PET/FOIL/POLY MET,
PET/POLY/CPP/OPP etc. |
|
| ELECTRICALS : |
| |
| Motor : |
| ½ hp, 220V, single phase 50-60 hz. |
| |
| Heater : |
400w x 4pcs cartridge type (3/4 side sealing)
150w x 2pcs, 400w x 2pcs (Centre sealing)
|
| |
| Machine Dimensions : |
| Length 875 x Width 750 x Height 2200mm |
| |
| Net Weight : |
| 450kgs (Gross 480kgs) |
| |
| Optional Equipments : |
Stainless steel cover
Gas flushing system
Product elevator
Batch Printing Unit.
Conveyor
|
|
