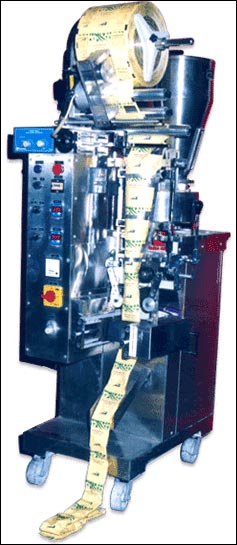

Fully Automatic Vertical Form-Fill-Seal Machine with Adjustable Dish
(Model No. JC-155)
Application: |
| This machine is suitable for packing any free flowing Powder, Granules, Spices, Mehendi, Churn, Pharmaceutical Powder, Agricultural Powder, Ayurvedic Powder, Tea, Detergents, Chemicals, Kirana Items etc. |
| |
| Sealing Type : |
| Centre sealing |
| |
| Packing Size : |
100mm - 280mm (film length)
200mm - 400mm (film width)
(Enlarged type can be made upon order)
|
| |
| Packing Range : |
50gms, lOOgms, 250gms & 500gms
(Depending on specific gravity of material to be packed)
|
| |
| Speed : |
25 - 28 pouches / min.
(Depending on flow rate & volume of the product). |
| |
| Packing Material : |
| All heat sealable laminate PET / POLY, PET / FOIL / POLY MET, PET / POLY / CPP / OPP etc. |
|
| ELECTRICALS : |
| |
| Motor : |
| ½ hp, 220v/single phase/50-60hz. |
| |
| Heater : |
| 150w x 2pcs, 400w x 2pcs |
| |
| Machine Dimensions : |
| Length 875 x Width 750 x Height 2200mm |
| |
| Net Weight : |
| 450kgs (Gross 480kgs) |
| |
| Optional Equipments : |
Stainless steel cover
Gas flushing system
Product elevator
Batch Printing Unit.
Conveyor.
|
|
