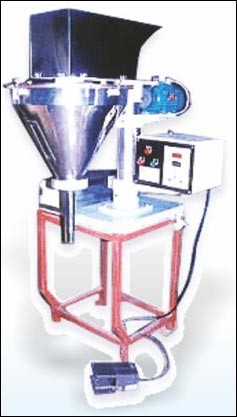

"PI" Semi Automatic Auger Filler Machine
|
| Semi-Automatic Machine with Auger Filling System operates on the principle of positive displacement Screw operating under constant head it will have a hopper and provided with a lid. The precisely designed Auger displaces the product through funnel into the container held under the funnel. A presettable electronic controller with photoelectric sensor will be provided to control the filling cycle through an enclosed electromagnetic clutch/brake unit. The machine is ideal for filling wide range of non free flowing powder. |
| |
| Specification : |
| |
| Filling Range |
| 50gms – 500gms – 1000gms |
| |
| Filling Speed |
28 – 30 fillings / min.
(Depending upon the product & quantity to be filled) |
| |
| Electricity |
| 1hp., 220V single phase |
| |
| Machine Dimension |
| (L) 585mm x (W) 1473mm x (H) 1728mm |
| |
| Net Weight |
| 175kgs. |
|
|
