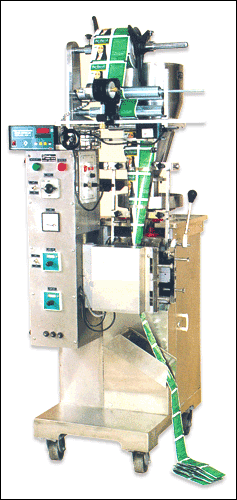

Automatic Vertical Form-Fill- Seal Machine for Packing Powder
(Model No. JC-150)
Application: |
| This machine is suitable for packing any free flowing Powder, Granules, Spices, Pan Masala, Dhana Dal, Tobacco, Mehendi, Churn, Pharmaceutical ORS Powder, Agricultural Powder, Ayurvedic Powder, Tea, Detergents, Chemicals etc. |
| |
| Sealing Type : |
| 3 Side Sealing / 4 Side Sealing |
| |
| Packing Size : |
50 mm – 150mm (film length)
30mm – 220mm (film width)
( Enlarge type can be made upon order )
|
| |
| Packing Range : |
1gms, 5gms, 10gms, 25gms to 50gms
(Depending on specific gravity of material to be packed)
|
| |
| Speed : |
35 – 38 pouches / min
(Depending on flow rate and volume of the product.) Convenient size & packing speed are adjustable.
Adjustment can be made while the machine
is running.) |
| |
| Packing Material : |
All heat sealable laminate PET / POLY, PET / FOIL / POLY MET, PET / POLY / CPP / OPP etc. |
|

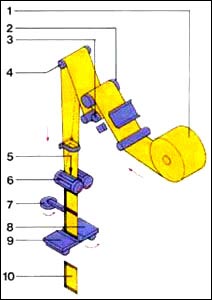

1. Film holder
2. Rubber roller
3. Film guiding roller
4. Final film guiding roller
5. Filling of packed goods
6. Single heat sealing roller
7. Notch device
8. Spinning blade of cutting device
9. Dead blade of cutting device
10. Sending-forth finished products
| ELECTRICALS : |
| |
| Motor : |
| ½ hp, 220V, single phase 50-60 hz. |
| |
| Heater : |
| 400w x 4pcs cartridge type(3 – 4sides Sealing) |
| |
| Machine Dimensions : |
| Length 750 x Width 650 x Height 1850 mm |
| |
| Net Weight : |
| 380 kgs (Gross 450 kgs) |
| |
| Optional Equipments : |
Stainless steel cover
Gas flushing attachment
Product Elevator
Batch printing unit
Conveyor. |
|
