Fully Automatic Vertical Form-Fill-Seal Machine for Packing Liquid
(Model No. JC-151)
Application: |
| The machine operates on the principle of Volumetric syringe filling system with a provision of volume adjustment. This machine can pack liquid items such as Shampoo, 2T oil, Syrup, Hair Oil, Soft Drink, Mineral water, etc. |
| |
| Sealing Type : |
| 3 Side Sealing / 4 Side Sealing |
| |
| Packing Size : |
50mm - 150 mm (film length)
50mm - 200mm (film width)
(Enlarge type can be made upon order) |
| |
| Packing Range : |
5ml - 25ml, 40ml - 100ml
(Depending on specific gravity of material to be packed) |
| |
| Speed : |
28-30 pouches /min.
(Depending on flow rate and volume of the product.) Convenient package size & packing speed are adjustable. |
| |
| Packing Material : |
| All heat sealable laminate PET / POLY, PET / FOIL / POLYMET, PET /POLY/ CPP / OPP etc. |
|

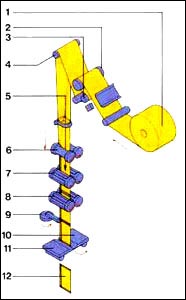

1. Film holder
2. Rubber roller
3. Film guiding roller
4. Final film guiding roller
5. Filling of packed goods
6. Vertical heat sealing roller
7. Horizontal heat sealing roller
8. Cooling sealing roller
9. Notch device
10. Spinning blade of cutting device
11. Dead blade of cutting device
12. Sending-forth finished products
| ELECTRICALS : |
| |
| Motor : |
| ½ hp, 220V, single phase 50-60hz. |
| |
| Heater : |
| 400w x 4pcs cartridge type |
| |
| Machine Dimensions : |
| Length 750 x Width 650 x Height 1850mm |
| |
| Net Weight : |
| 350 kgs. (Gross 400 kgs.) |
| |
| Optional Equipments : |
Stainless steel cover
Batch Printing Unit. |
|
